World's First 200G Network Analyzer
The QP1000 Series
Designed for high performance and high density computing environments, the QP1000 computational prowess is attributed with the latest in networking and storage hardware all working together using Quantea’s software. The QP1000 offers up to 2 x 200G performance with 576 terabytes of network traffic storage.
The QP1000 offers flexible configuration like no other
From 1G to 200G, 12TB to 576TB, single-node or dual-node; configuration can be tailored to for small business networks to large corporations with their data center class networks.

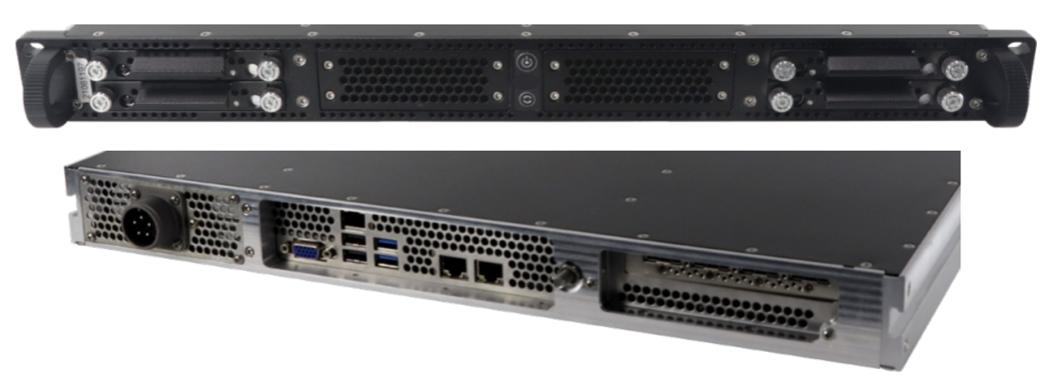

The QP1000 is Quantea’s 1U network analyzer appliance designed for deployment across a wide spectrum of networks. Whether it is deployed along the network edge, switch or core network, the QP1000’s form factor makes it easy to deploy in a rack or server cabinet. The QP1000 is also available as a dual-node appliance which offers complete failover to guarantee continuous operation.
Specifications
The QP1000 provides high performance and great storage capacity while maintaining ease of deployment.
Capabilities
The QP Series has powerful and essential capabilities which make it a necessary solution for every network.
Packet by Packet Data for Cybersecurity Forensics
When a security breach happens in the network use the QP to query all the packets of where the incident took place using the QP's packet search functionality.
100% Accurate High Speed Network Data Recording
Data accuracy is at upmost importance when it comes to analyzing and preventing security and performance issues.
Network Traffic Replay to Playback Incidents
Playback network incidents such as breaches, peak hour traffic and connection issues in order to replicate and remediate.
Extensive Filtering Capabilities Using Virtual Capturing
Virtual filtering introduces a powerful way of separating network traffic based on relevancy. Isolate relevant data and data that is not relevant at that moment.
All-in-one Software Under the Hood
QManager
All QP Series appliances are powered by QManager which provides powerful capture management tools, virtual packet capture, high performance compression, comprehensive packet search and system administration tools.
1 Year License Included
PureInsight
1 year of PureInsight is included with a purchase of a QP. PureInsight allows the multiple users to visualize and search relevant network traffic data. PureInsight software suite includes several dashboard and is continuously being improved with new dashboards and features.
Detailed Specifications
Model Name
Quantea QP1000 Series
Dimensions
437 x 44 x 801 millimeters (1RU)
Weight
23.0Kg (50.7lbs)
Construction
Rolled Steel and Aluminum
Power Supply
1300W (100-240V) Worldwide
Average Load
450-700 Watts
Operating Conditions
Temperature: 5C – 35C, Humidity: 8-90%
Non-Operating Conditions
Temperature: -40C – 60C, Humidity: 5-95%
Storage Array
All Flash Storage in RAID 1/10/5/6
Processors
Up to 64 Logical Processing Cores
Memory
Up to 1TB
Adapter Slot #1
1/10G x 4 or 25/40/50/100G x 2 or 200G x 1
Adapter Slot #2
1/10G x 4 or 25/40/50/100G x 2 or 200G x 1
Capacity Options
24 / 48 / 64 / 72 / 92 / 288 / 576 TB
Rack Mount Kit (Included)
Rack Mount and Rails with Cable Management Arm
Transceivers (Optional)
10G / 25G / 100G LC , SR/LR
Configure Your Own Build by Contacting Us
Get fast response the same day or within the same hour.
